Product Specifications
| Prod Model: |
SSR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Zofr
Model Number: SSR

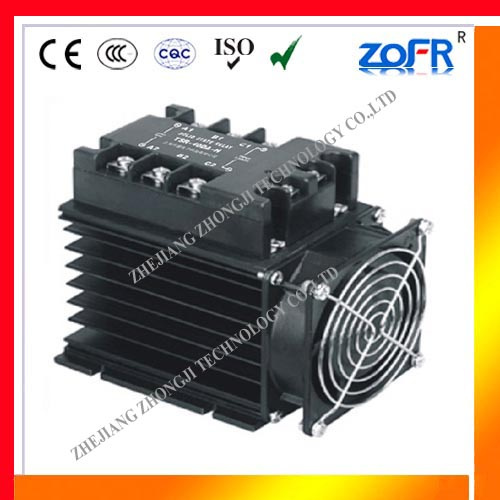

Theory: Solid State Relay
Usage: General Purpose
Size: Miniature
Protect Feature: Sealed
Contact Load: High Power
Packaging & Delivery
Packaging Details: Standard Export Carton Packing
Delivery Detail: 1000PCS within 7 days
Specifications
1 RoHS Certificate, CE Certificate of European Union available
2 certificate of ISO9001: 2000 OEM available
3 timely delivery
Load voltage: 90-660VAC
Max Load Current: 100A, 120A, 150A, 200A, 300A
Isolation between In & Out: ≥ 2000VAC
Isolation to case: ≥ 2000VAC
Control Voltage: 3-32VDC
Control Current: 15mA-20mA
Turn-on Voltage: ≤ 1.5V
Off-state Leakage: ≤ 1mA
Off-state DV/Dt: 300V/us
Max On or Off Time: 10ms
Frequenty Range: 47~63Hz
Status indicator: LED
Operating Temperature: -40~80° C
When SSR power on, heat will be produced due to reason such as turn-on voltage, the 1A operating current is equal to has the 1W calorific capacity. Therefore when is bigger than 5A in the operating current, should dispose radiator.
