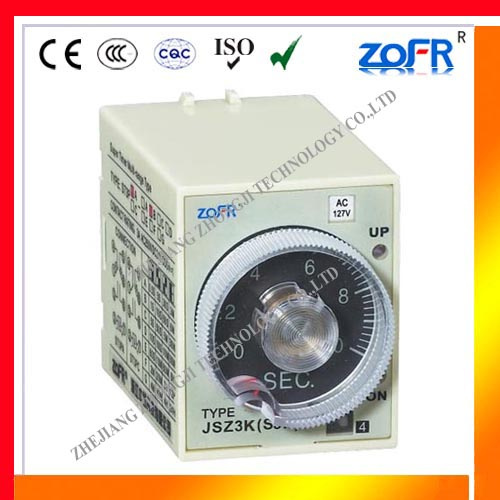

Timer Relay (ST3PK)

Timer Relay (ST3PK)
Supplier: Zhejiang Zhongji Technology Co., Ltd.
Price: US $ 5/Piece
Min Order: 50/Piece
Quantity::
Trade Terms: FOB,CFR
contact supplier

Product Specifications

Prod Model: ST3PK
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Zofr
Model Number: ST3PK
Theory: Time Relay
Usage: General Purpose
Size: Miniature
Protect Feature: Epoxy
Contact Load: High Power

Packaging & Delivery
Packaging Details: Standard export cartons
Delivery Detail: 10 Days

Specifications

Power off time delay relay ST3PK(JSZ3K)
AC: 380V/50Hz
Contact capacity: AC250V, 5A resistence

ST3PK(JSZ3K) series time relay is used ASIC and professional manufacturing technology to produce innovative time relay, with small size, light weight, delay a wide range of anti-interference ability, long life characteristics to be suitable for a variety of demanding precision, high reliability, automation and control sites used for delay control.

Normal operating conditions and installation conditions
1, Use of the environment: The altitude not exceeding 2, 000 m; Around the attack is not higher than +40 ambient temperature and not lower than -5; Supply voltage range of 85% -110% rated voltage; In the absence of severe shock and explosion medium risk and medium non-corrosive metal and undermine the insulation is sufficient gas and dust; In the absence of rain and snow in places;
2, Vertical or horizontal installation.

Technical features
1 Repeat error: Less than 2.5%
2 Contact capacity: AC 250V, 3A
3 Operation Voltage: 380V 50Hz;
4 Mechanical life: Greater than or equal to 100 million times;
5 Electrical life: Greater than or equal to 10 million times;
6 Power consumption: Less than or equal to 1.5W;
7 Delaying precision <5%;
8 Delaying specification: 0.5s 5s 10s 30s 60s 180s 5min 10min.

ST3P Series Time Relay Multi-file type specification has a different delay profile, you can at the same time the front of the relay switch is easily converted. When you need to change delay file, first remove the setting knob, then remove the scale plate, and then refer to nameplate on the schematic drawing of the delay range of dynamic change-over switch, and then scale as is loaded on board and set the knob, switch position should be marked with the scale on-board switch position is consistent.

Notes
The use of relay operating voltage should be rated operating voltage range.
Greater than the rated load power relays, please add the middle relay.

Product storage and dynamic inputs are not subject to rain and snow during the invasion, should be placed in storage in the air circulation, relative humidity (25 ± 5 ) does not exceed 90%. The temperature limit of -5, the temperature limit of +40
